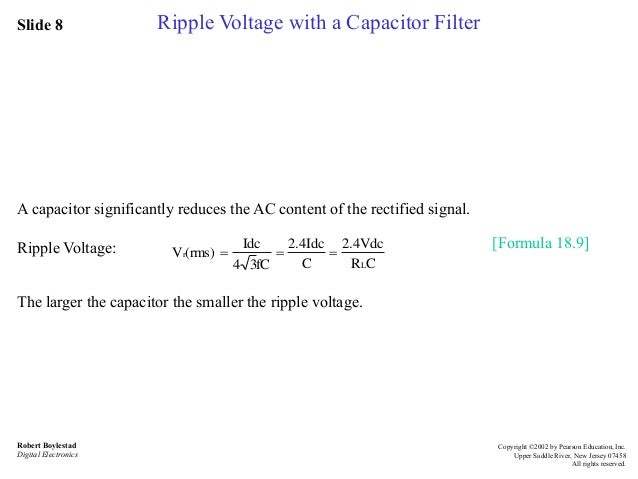

Capacitor Filter Formula. Ripple factor shows the effectiveness of the filter and defined as r frac v r pp v dc where v r pp is the ripple voltage peak peak and v dc value of the filtered output. F input frequency of ac.
X c 1 2 3 14 f c. Therefore the ability of so designed filter to trace the speed change appears excellent. In the next paragraphs we are going to endeavor to determine the formula for computing filter capacitor in power supply circuits for guaranteeing smallest ripple at the output determined by the attached load current spec.
Solving this equation for v yields the formula for exponential decay.
C i 2 x f x vpp where i load current. Plugging it into the formula. F input frequency of ac. A capacitor gives an infinite reactance to dc for dc f 0.
